Xantrex Heart Echo Charge Charging Panel [82-0123-01]

Xantrex Heart Echo Charge Charging Panel [82-0123-01]

Original price was: $30.40.Current price is: $15.24.

SKU: CWR-14258 Category:

Description

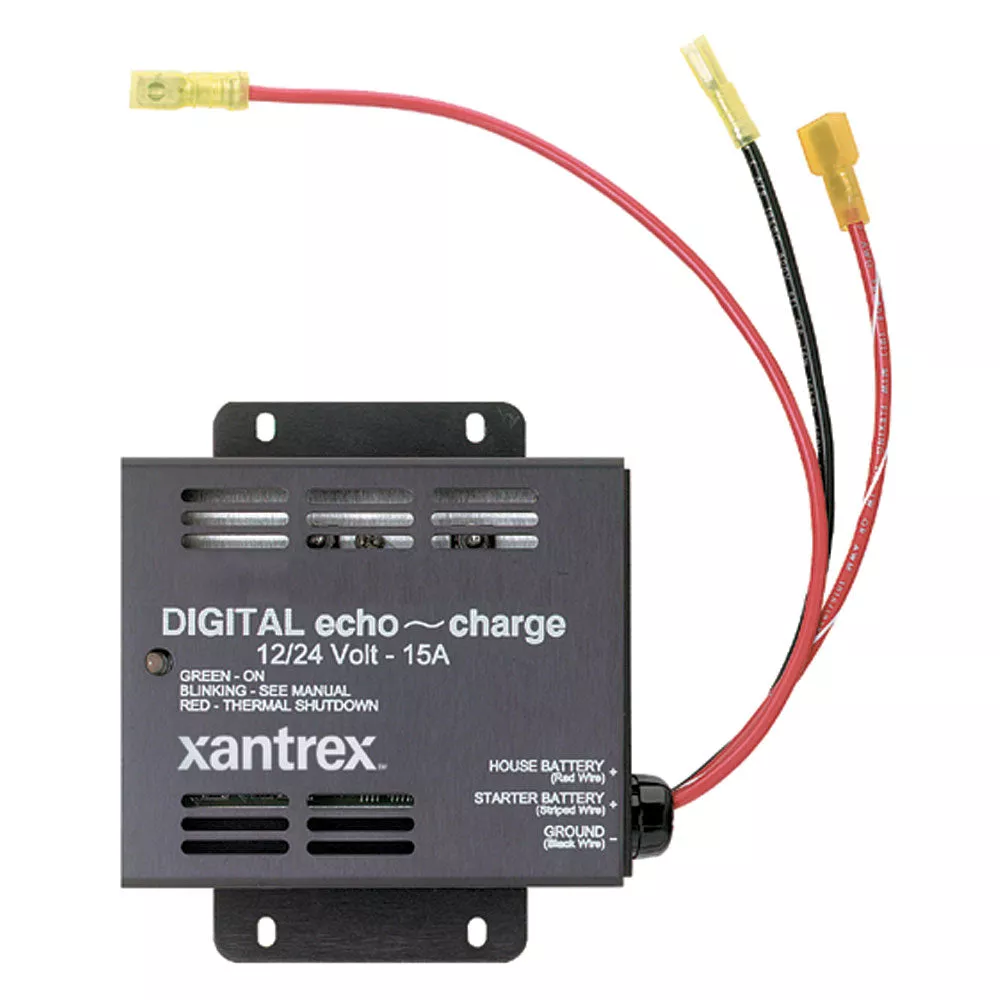

Convenient Dual Battery Bank ChargingXantrex digital echocharge (part82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echocharge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echocharge is limited to 15 amps.Product Features

  • 15 A maximum charge current
  • Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
  • Automatically switches on/off without affecting the in-house battery bank or over-charging
  • Utilizes excess current from the primary charging source
  • Built-in thermal and over-current circuits
  • Reverse polarity protection
  • Easy three wire installation

Specifications:

  • Charger Output – Amps: 15a
  • Charging Banks: 1
  • Portable: No
  • Charger Input – Voltage: 120v
  • Charger Output Voltage: 12/24v
  • Box Dimensions: 3″H x 7″W x 10″L WT: 1.2 lbs
  • UPC: 647912105722
