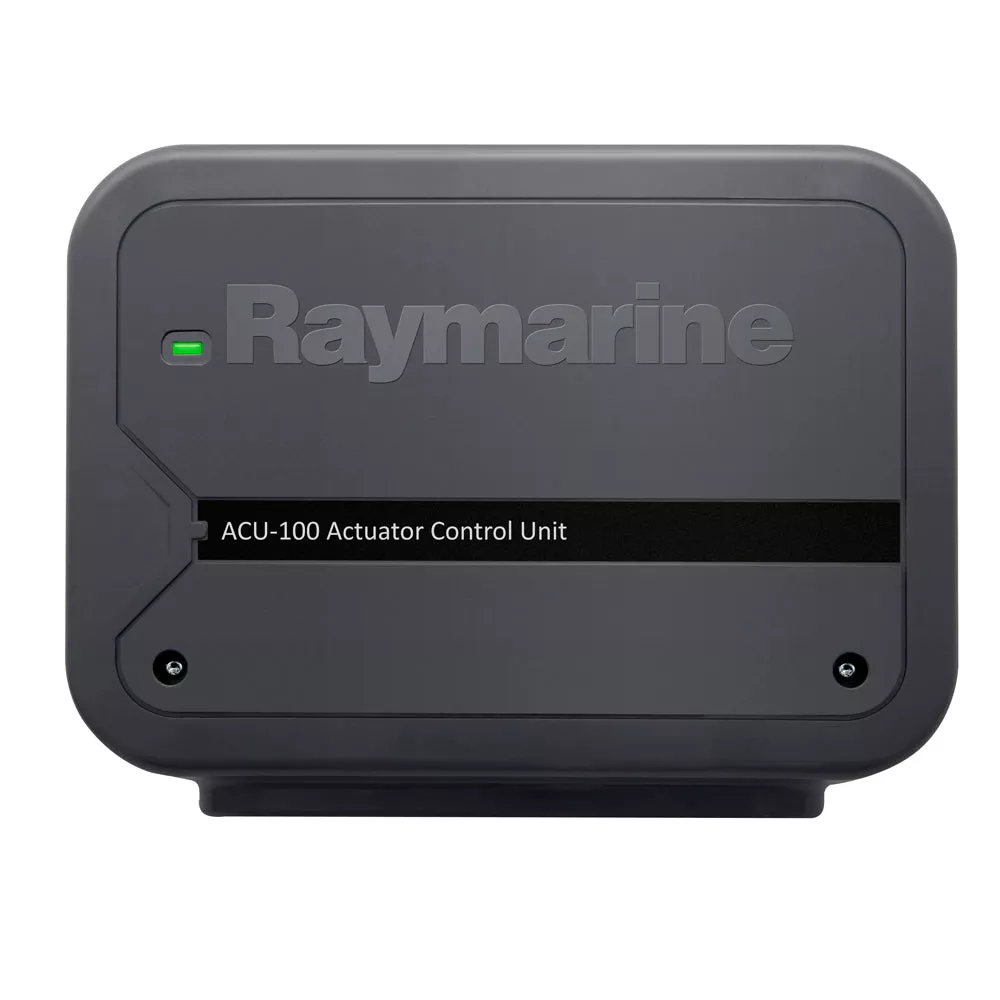

Raymarine ACU-100 Actuator Control Unit [E70098]

Raymarine ACU-100 Actuator Control Unit [E70098]

Original price was: $82.88.Current price is: $47.87.

SKU: CWR-49108 Category:

Description

Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 7 Amps at supply voltageDrive Clutch OutputNo clutch connectionConnections

  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground

Nominal supply voltage12 VOperating voltage range10.8V to 15.6V dcPower Consumption (standby) – Main Power Supply300 mA (12V)Power Consumption (standby) – SeaTalkng Power SupplytNo power supply to SeaTalkngSeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power OutNo power supply to SeaTalkngData ConnectionsSeaTalkngInstallation Environment

  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating

  • Connector Panel: IPX2
  • Drive Electronics: IPX6

Dimensions (W x H x D)180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)Weight0.6 kg (1.32lbs)Conformance

  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

  • Type: Parts
  • Box Dimensions: 4″H x 8″W x 12″L WT: 2 lbs
  • UPC: 723193768907
