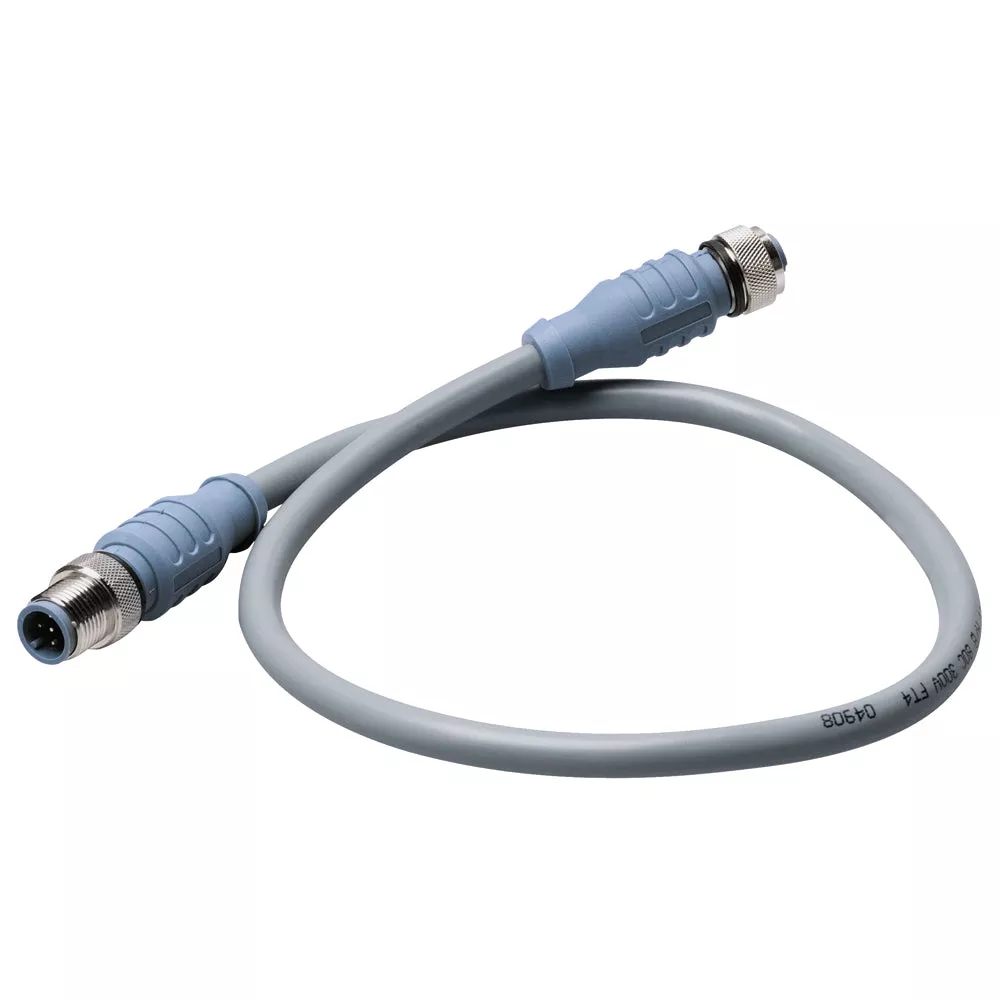

Maretron Mid Double-Ended Cordset – 0.5 Meter – Gray [DM-DG1-DF-00.5]

Maretron Mid Double-Ended Cordset – 0.5 Meter – Gray [DM-DG1-DF-00.5]

Original price was: $6.96.Current price is: $5.56.

SKU: CWR-46987 Category:

Description

Maretron Mid Double-Ended Cordset – 0.5M GrayMechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 VCable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Cable Length (Feet): 2′
    • Box Dimensions: 1″H x 5″W x 7″L WT: 0.15 lbs
    • UPC: 873804001760
