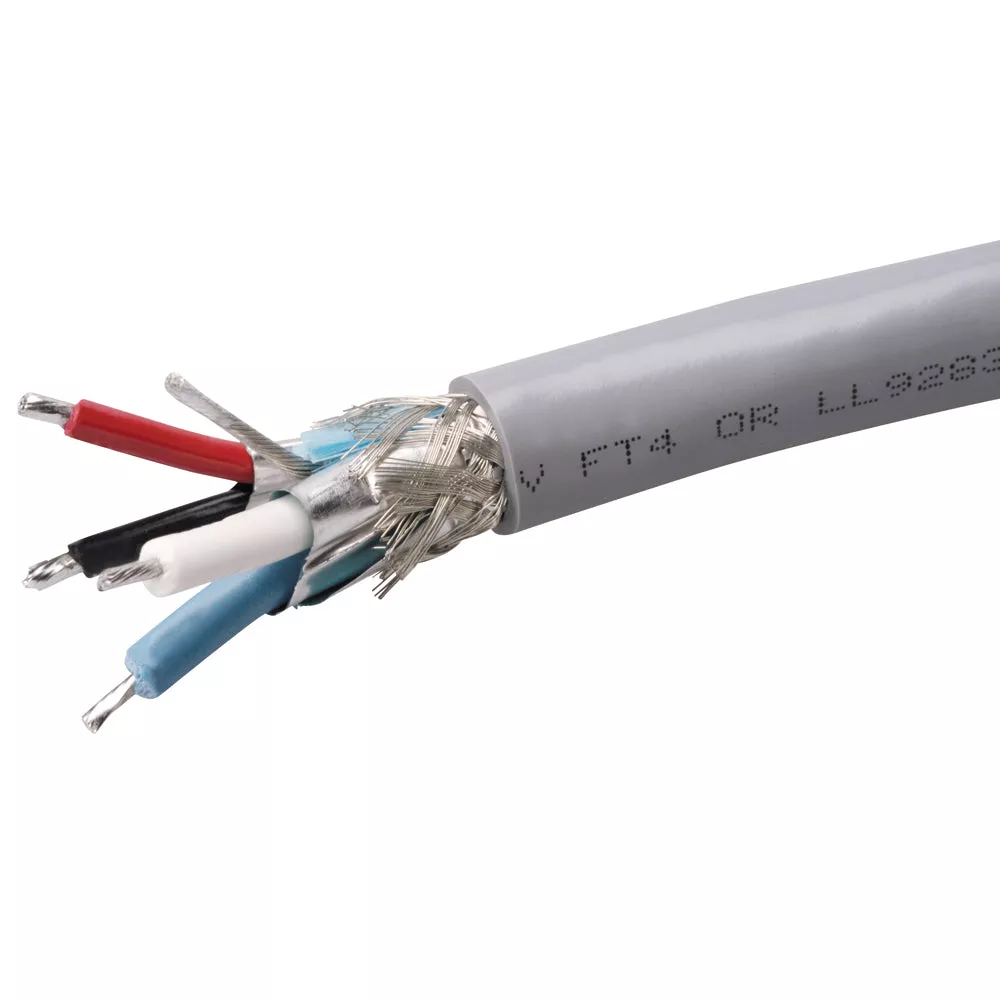

Maretron Mid Bulk Cable – 100 Meter – Gray [DG1-100C]

Maretron Mid Bulk Cable – 100 Meter – Gray [DG1-100C]

Original price was: $77.44.Current price is: $61.37.

SKU: CWR-47023 Category:

Description

SpecificationsOverall

  • Outer Jacket Mat/Color: PVC/Gray – DG1 PVC/Blue – DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction:2×16 (1.29mm) AWG, 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)Power Pair
  • Wire:2×16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage:14 Amps
  • Color Code:Red/BlackData Pair
  • Wire:2×20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code:White/BlueApprovals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3

    Specifications:

    • Cable Length (Feet): 328′
    • Box Dimensions: 11″H x 12″W x 12″L WT: 25 lbs
    • UPC: 873804003030
