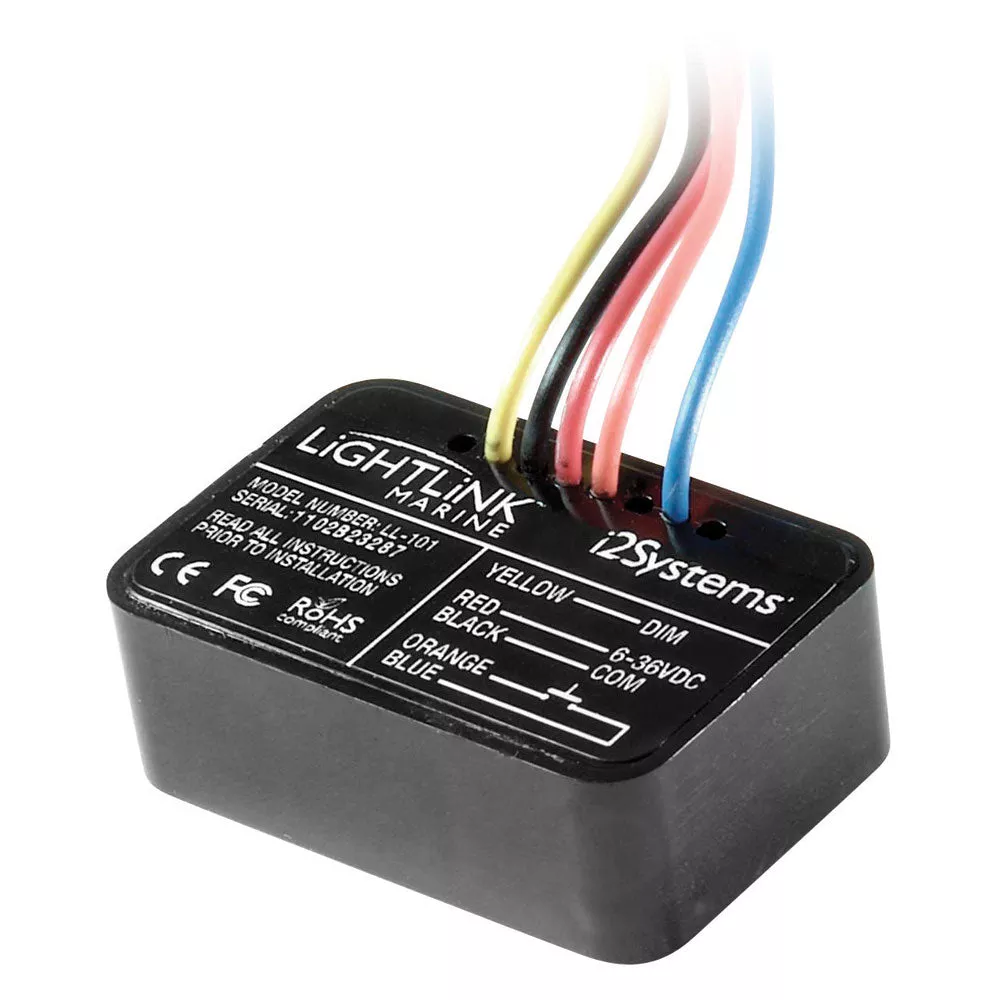

i2Systems LightLink Marine Dimming Module [LL-101]

i2Systems LightLink Marine Dimming Module [LL-101]

Original price was: $19.44.Current price is: $12.85.

SKU: CWR-39090 Category:

Description

LightLink LL-101 Marine Dimming ModulePart : LL-101Operation is simple! Press and hold the momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged, ranging from 100% to approximately 5% intensity holding 2 seconds at each position before dimming the opposite direction. Briefly press and release momentary switch for on/off operation.Specifications:

  • Input Voltage: 6-36 Volt DC
  • Dimensions: Width: 1.5″ x Height: 0.5″ x Depth: 1.0″

Features:

  • Compatible with i2Systems Apeiron, Ember and Profile lights
  • Dimming control via a momentary switch or contact
  • Small size, encapsulated, fits into most switch boxes

The LL-101 means that no matter what level you have the lights at when you turn them off, they will resume at full brightness when turned back on. The LightLink LL-101 is capable of dimming and controlling up to (20) i2Systems Fixtures, including:

  • Apeiron A1110
  • Apeiron A2162
  • Ember E1150
  • Profile P1100

(20′) i2Systems

  • S-Line S1200

Specifications:

  • Type: Parts
  • Box Dimensions: 2″H x 4″W x 4″L WT: 0.4 lbs
