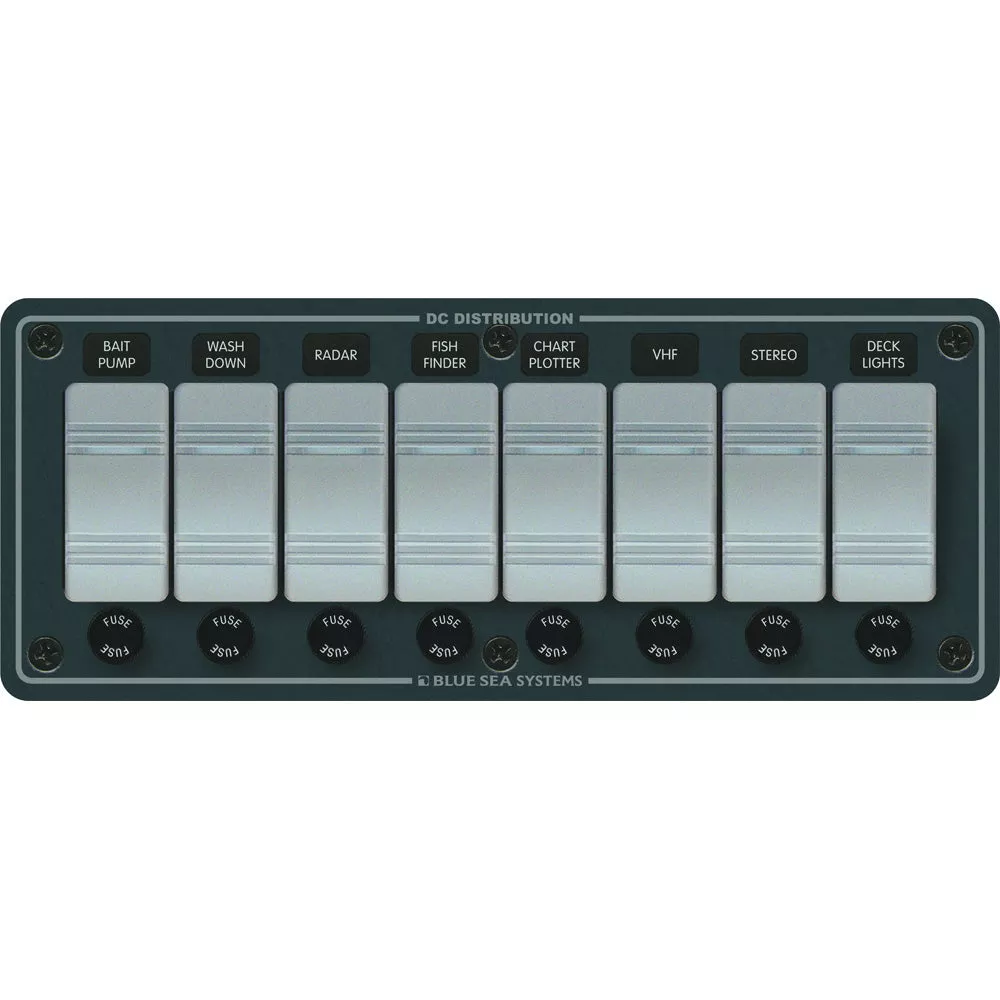

Blue Sea 8261 Waterproof Panel 8 Position – Slate Grey [8261]

Blue Sea 8261 Waterproof Panel 8 Position – Slate Grey [8261]

Original price was: $35.60.Current price is: $28.02.

SKU: CWR-14578 Category:

Description

8261 Waterproof Panel 8 Position – Slate Grey

Features:

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • Designed for flybridge and open cockpit applications
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install

Specifications:

  • Weatherproof: Water Resistant
  • Positions: 8
  • Nominal Voltage: 12v / 24v
  • Panel Cumulative Rating: 90A
  • Switch Rating: 20A @ 12v DC / 15A @ 24v DC
  • Height: 3.75″
  • Width: 9.37″
  • Depth: 3″

Included:

  • (8) 5021 Panel Mount AGC/MDL Fuse Holder
  • (1) 8214 Black 60 Label Set
  • (8) 8230 Contura Switch SPST Gray – Off-On

Specifications:

  • Waterproof: Resistant
  • AC/DC: DC
  • Max Breaker Quantity: 8
  • Voltage: 12/24v
  • Box Dimensions: 7″H x 10″W x 10″L WT: 5.6 lbs
  • UPC: 632085082611
