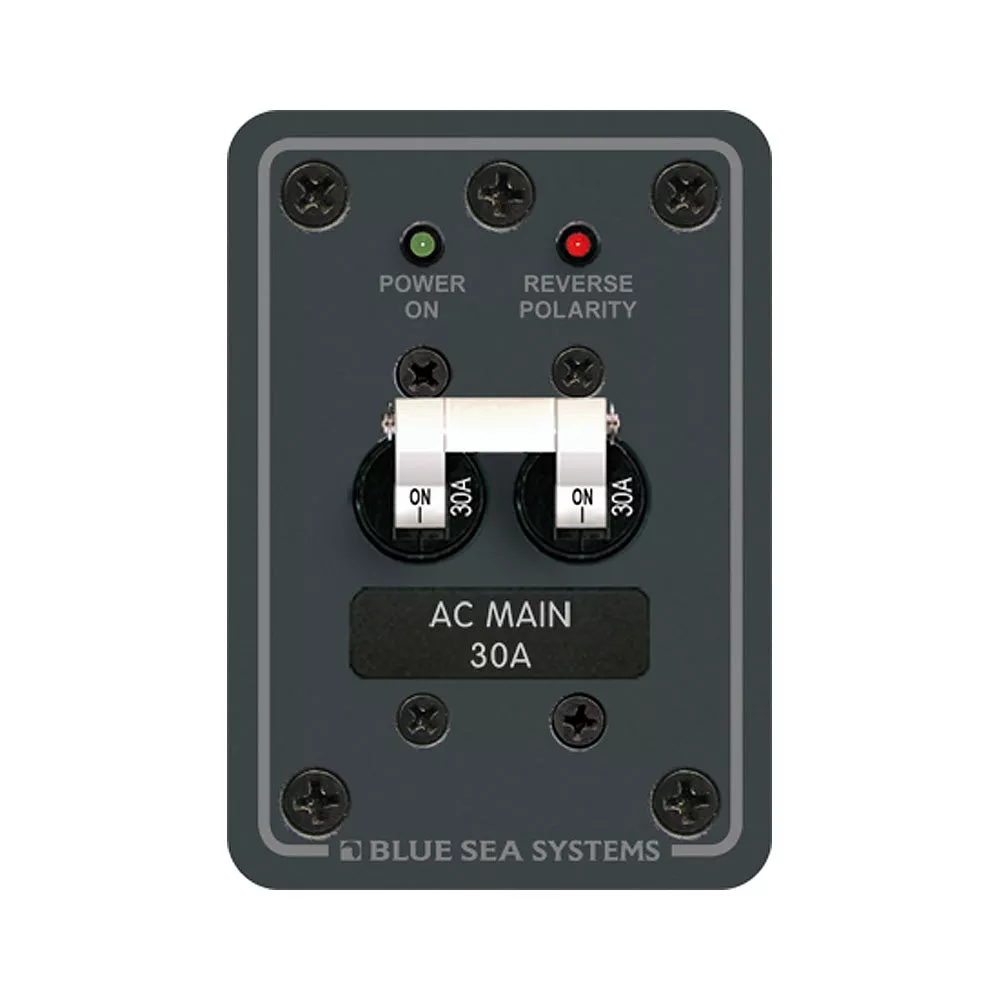

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077]

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077]

Original price was: $23.28.Current price is: $12.78.

SKU: CWR-19053 Category:

Description

8077 AC Main Only Toggle Circuit Breaker Panel

Features:

  • Red reverse polarity indicating LED
  • Safety ground screw on panel back
  • Combines switching and circuit protection into a single device
  • “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

  • Nominal Voltage: 120v AC
  • Maximum Voltage: 277v AC / 65v DC
  • Height: 3.75″
  • Width: 2.63″

Included:

  • (1) 8034 LED – 120v AC Green
  • (1) 8066 LED – 120v AC Red
  • (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 1
  • Voltage: 120v
  • Box Dimensions: 3″H x 4″W x 7″L WT: 0.7 lbs
  • UPC: 632085000004
